  • MOTIMOVE
    •

    MOTIMOVE

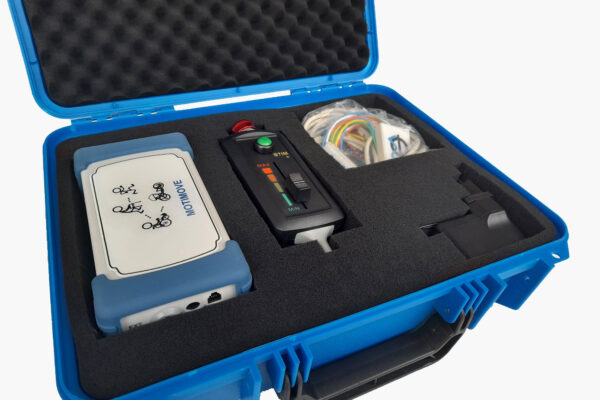

    MOTIvation to MOVE stimulator generates contractions of paralyzed innervated muscles in a manner that provides the desired function. Motimove 8 is an eight-channel battery-powered stimulator for paralyzed muscles with sensor control and many extras. Motimove 4 is a four-channel stimulator for paralyzed muscles with sensor control (light version). MOTIMOVE is a multi-channel electronic stimulator which communicates via Bluetooth with a remote computer (graphical command display) for the selection of the application, fast one-time calibration, and setup of stimulation parameters. MOTIMOVE takes advantage of many sensors’ inputs for personalized sensor-driven control. After setup, MOTIMOVE can operate independently without the remote computer.

    >

    The envisioned applications of the MOTIMOVE are:

    • The assistance of the volitional exercise of cyclic and goal-oriented functional movements;
    • Generation of missing movement that is the prerequisite for cyclic or goal-oriented functional movements;
    • exercise aiming to increase muscle strength and bulk;
    • an exercise that can decrease the level of spasticity;
    • an exercise that can increase the range of motion;
    • an exercise that prevents complications of no-use pattern;
    • an exercise that prevents pressure sores;
    • exercise increasing the local and overall blood circulation;
    • an exercise required to allow the standing (loading of the skeleton and bodily liquids by gravity)

    >

    Specifications

    MOTIMOVE 8

    Channels: 8 individual current sources Pulse amplitude: 0-170 mA Pulse width: 50-1000 us (PW*F≤0.025) Frequency: 1-500 Hz (PW*F≤0.025) Max voltage output: 350V Size: 176 x 91.5 x 66.5 mm Inputs for sensors: 6 analog, 8 digital, 2 x I2C Outputs: power supply 3.3V, 5V, 7.4V, synchronization Connectivity: Bluetooth or USB. Extra connectivity: 2 stimulators (8+8 channels) can operate in synchrony. Data acquisition: 10s at 100Hz via Bluetooth Power supply: internal battery 3500mAh, external battery pack or external supply 12-24V Accessories: remote controller, two stimulation cables for 4 channels each, charger, rigid carrying case

    >

    MOTIMOVE 4

    Channels: 4 individual current sources Pulse amplitude: 0-170 mA Pulse width: 50-1000 us (PW*F≤0.025) Frequency: 1-500 Hz (PW*F≤0.025) Max voltage output: 350V Size: 176 x 91.5 x 41.5 mm Inputs for sensors: 4 analog, 1 digital, 1 x I2C Outputs: power supply 3.3V, 5V, 7.4V, synchronization Connectivity: Bluetooth or USB. Data acquisition: 10s at 100Hz via Bluetooth Power supply: external battery pack or external supply 12-24V Accessories: one stimulation cable for 4 channels each, soft carrying case
    • MOTIMOVE APPLICATIONS
    •

    MOTIMOVE APPLICATIONS

    FES cycling

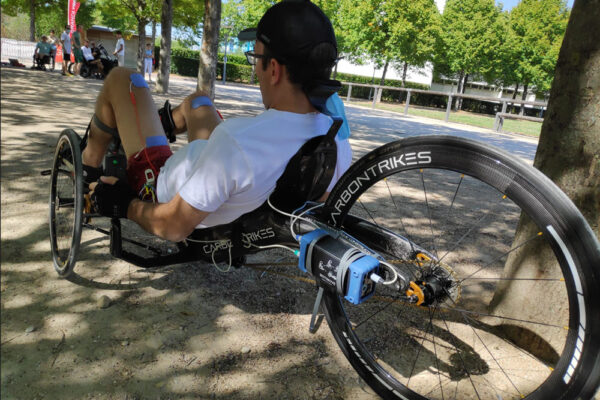

    Lower extremity and abdominal muscles are activated in a sequence. The sequence is controlled by signals coming from the sensor measuring the angle of the crank arm. Every channel can be combined with AFU to postpone muscle fatigue. Applicable for hemiplegics, paraplegics, tetraplegics and fitness.

    FES rowing

    The user controls the activation of flexor and extensor muscles by pressing the switch on the handle. Every channel can be combined with AFU to postpone muscle fatigue. Applicable for hemiplegics, paraplegics and fitness.

    FES walking

    Real-time control based on the signals from the wired insoles (sold separately). Each insole comprises five high-quality industrial pressure sensors and a gyroscope measuring foot rate of rotation in sagittal plane. The sensors are hysteresis-free with no measurable time delay. The system allows precise detection of gait cycle events and pressure distribution over the sole. Values from 6 sensors and states of stimulation can be acquired to a remote computer with 100Hz via Bluetooth. Insoles are resizable.Applicable for hemiplegics or paraplegics with robotic aid.

    FES grasping

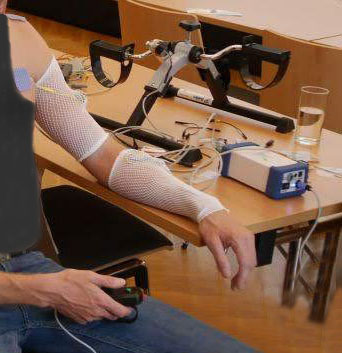

    Three-phase control of extensor and flexor muscle groups. Can be used for control of grasp (finger, wrist and thumb muscle) and prehension (shoulder and elbow muscles). Applicable for hemiplegics and tetraplegics.

    FES exercise

    Mild to strong stimulation for increasing the muscle bulk while in bed or a wheelchair. Applicable for ICU, prevention of pressure ulcers and fitness.

    FES custom

    Write to us and we will try to meet your demands. Take advantage of MOTIMOVE Research mode

    • ANTI-FATIGUE UNIT (AFU)
    •

    ANTI-FATIGUE UNIT (AFU)

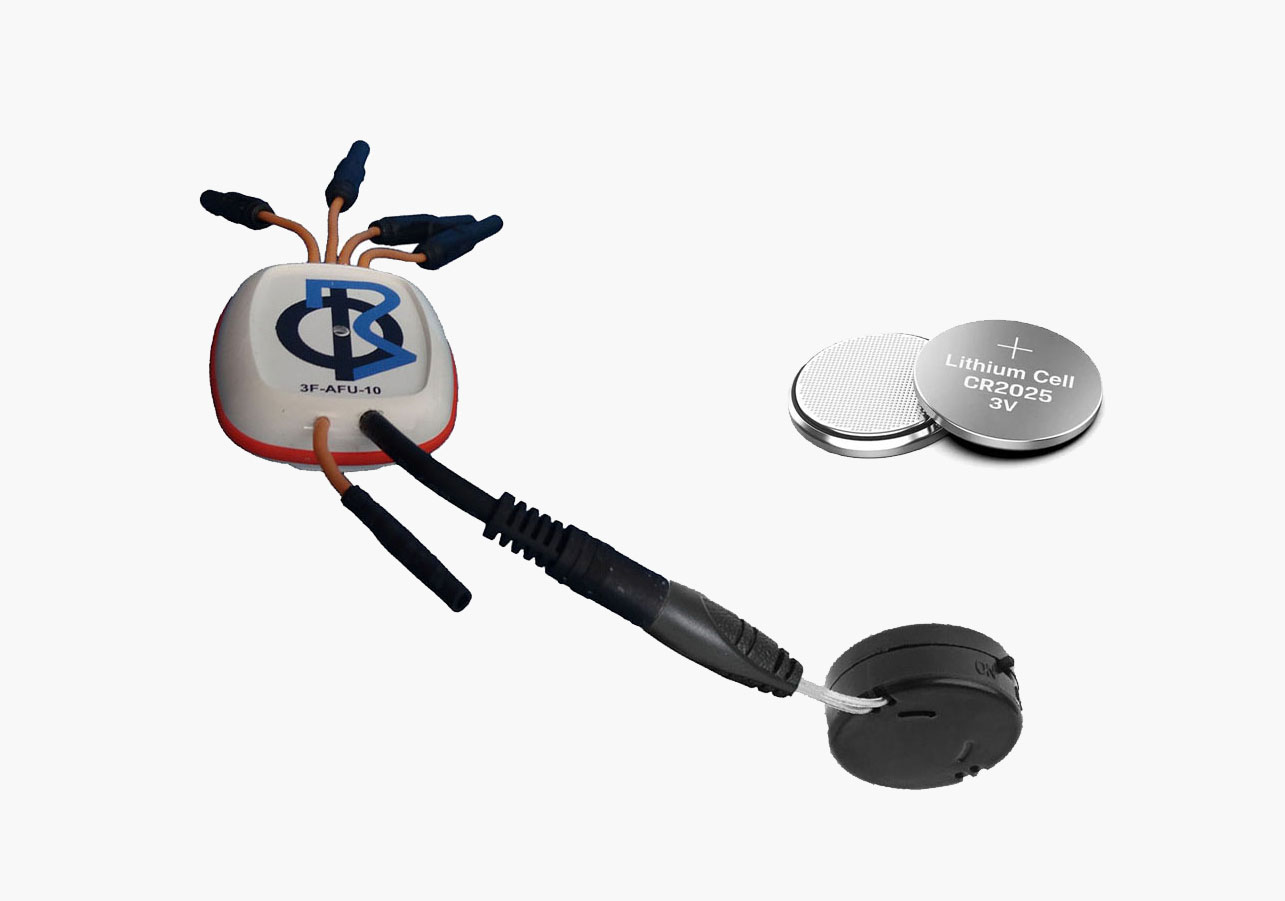

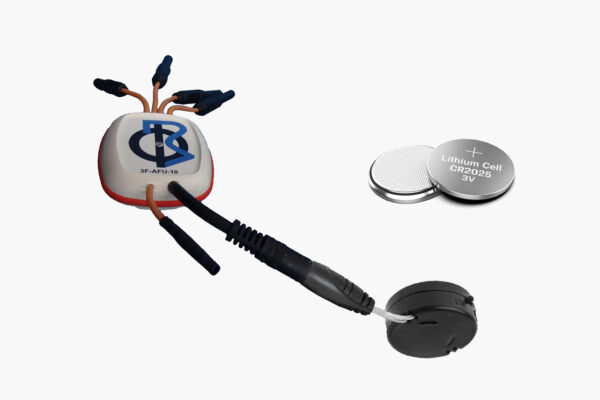

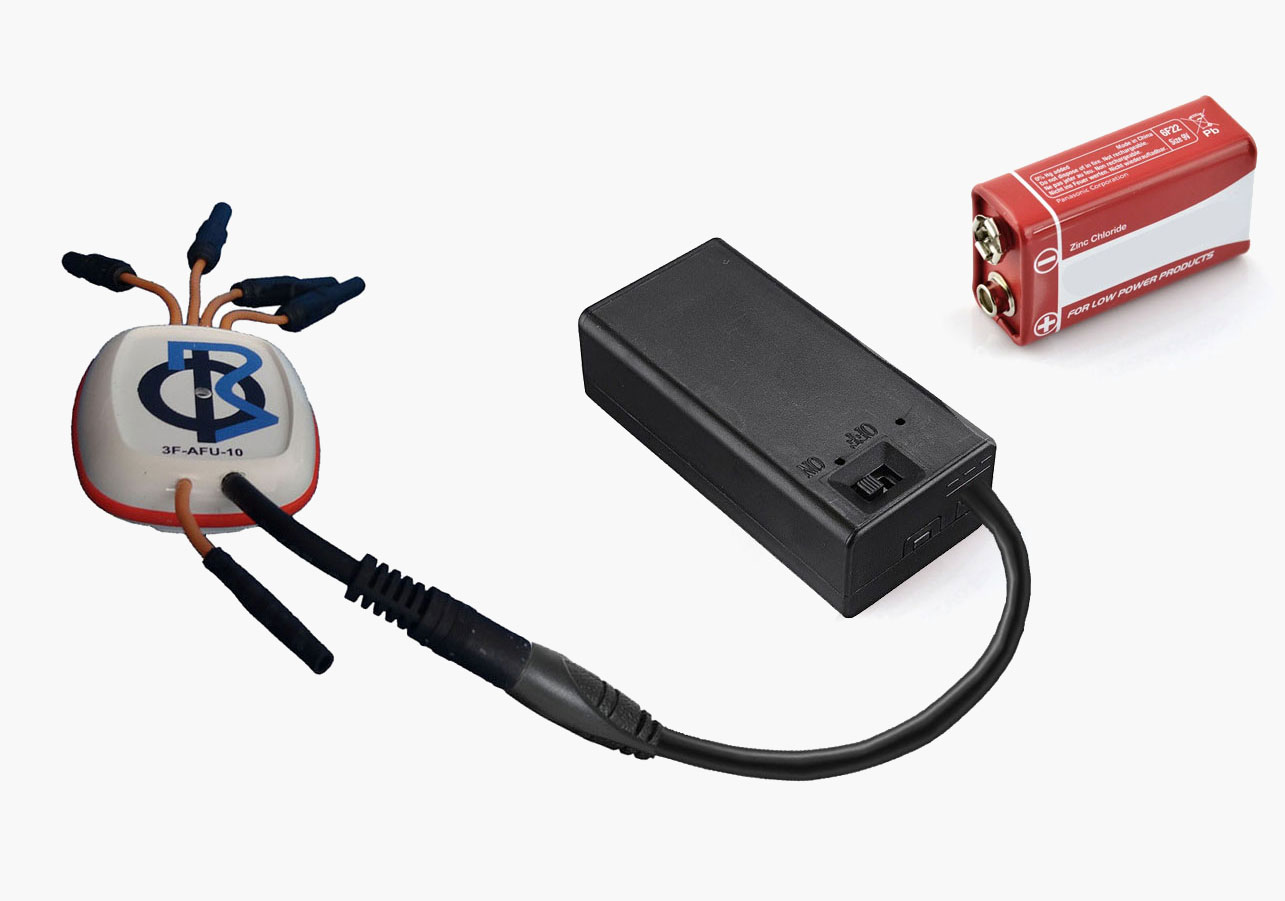

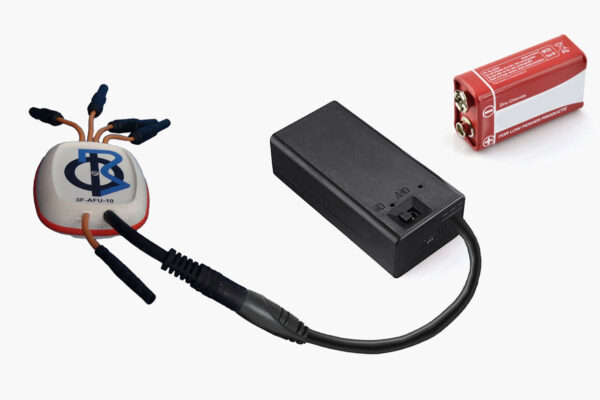

    AFU is power supplied from the stimulator battery via audio cable, but it can also be supplied externally with coin batteries. It can be used with any other stimulator if the following limits are met:

    • pulse amplitude: 0-170mA,
    • pulse width (PW): 50-1000us,
    • frequency (F): 1-500Hz,
    • where PW * F ≤ 0.025.

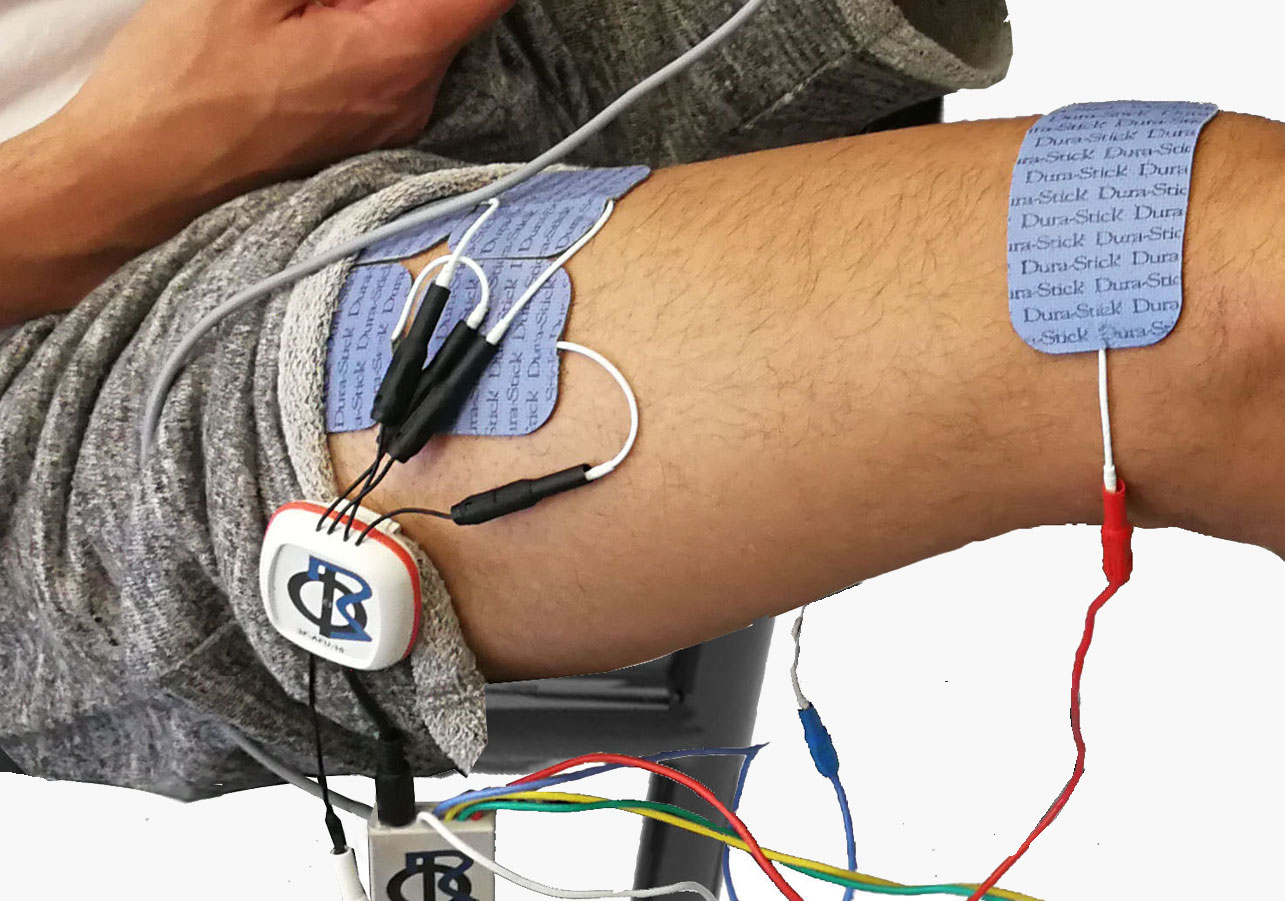

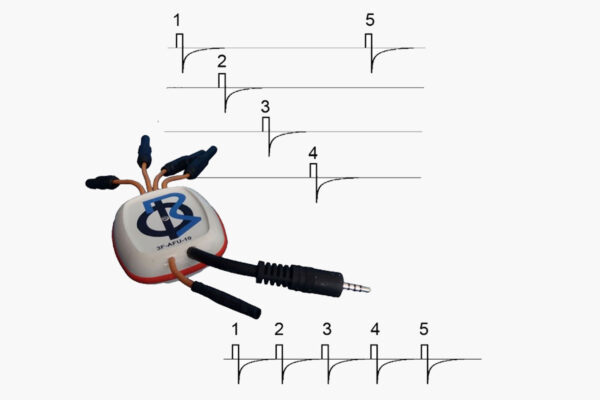

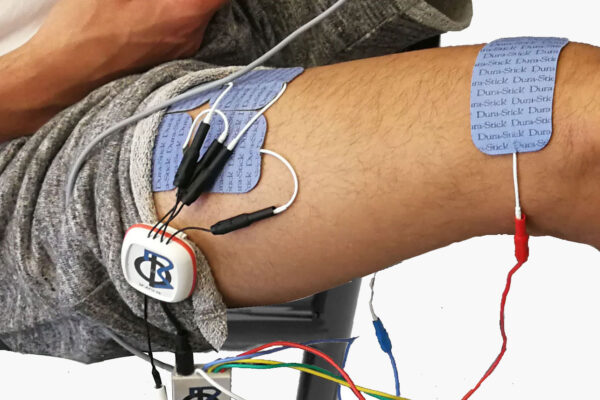

    AFU mimics the natural activation of a muscle to reduce FES-induced muscle fatigue. The asynchronous stimulation of different branches of a nerve innervating the same muscle or synergistic muscles via several electrodes at a lower frequency (≈10-15Hz) results with the fused contraction with the comparable force to the one generated with single large electrode activated at higher frequency (≈40–50 Hz); yet, postpones the muscle fatigue for several times. This phenomenon was confirmed in several clinical studies (see publications).

    Publications:

    • Popović-Maneski L, Malešević N, Savić A, Keller T, Popović DB. Surface distributed low-frequency asynchronous stimulation (sDLFAS) delays fatigue of stimulated muscles. Muscle & Nerve, 2013, Vol 48(6), pp.930-937, DOI: 10.1002/mus.23840.
    • Malešević, L. Popović, L. Schwirtlich and D.B. Popović, Distributed low-frequency functional electrical stimulation delays muscle fatigue compared to conventional stimulation, Muscle and Nerve, 2010, pp. 42(4): 556-562, DOI 10.1002/mus.21736.
    • Popović, L.Z., and Malešević, N.M. "Muscle fatigue of quadriceps in paraplegics: comparison between single vs. multi-pad electrode surface stimulation." In 2009 Annual International Conference of the IEEE Engineering in Medicine and Biology Society, 2009, pp. 6785-6788.
  • RESEARCH MODE
    •

    RESEARCH MODE

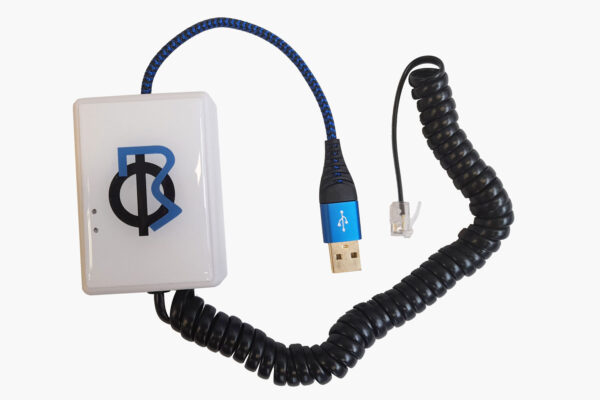

    Control is implemented via the RS485 communication protocol (Baud rate 115200). In this case, MOTIMOVE acts as a slave device with Bluetooth disabled.

    The stimulator will respond to a set of commands sent in 40 bytes, as shown below:

    • 5 bytes 0xFF,0x00,0x25,0x00,0x00 (message start - 1 byte, message length - 2 bytes, 2 dummy bytes- 0x0A0B is for no delay between pulses on adjacent channels). All values after first 5 bytes are to be sent in a lower nibble
    • 3 bytes for the period in ms (defined by the master controller). Pulses on consecutive channels are delayed for T/8, where T is the period of stimulation.
    • 4 bytes for power modulation (max value 10 = 100%)
    • 4 bytes for pulse width (max value 1000µs)
    • 8 x 2 bytes - stimulation value per channel (max value 170mA)
    • 2 bytes for demultiplexer channel selection (0x0F,0x0F if demultiplexer is not used)
    • 4 bytes not used
    • 1 byte for turning on high voltage (0x01 - on, 0x00 - off, 0x02 – do not change)
    • 1 byte for checksum
  • ARDUINO MODULE
    •

    ARDUINO MODULE

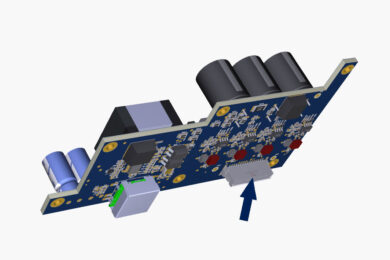

    The module has 32-pin interface for external control with:

    • digital inputs for pulse duration (50-1000us),
    • SPI for pulse intensity 0-170mA in steps of 1mA,
    • Digital inputs for control of SSD relays for instantaneous, complete discharge of outputs, and
    • digital outputs for electrode detection.

    Pulses can be generated at the same time on all channels (max 25µs delay between channels).

  • ELECTRODES
    •

    ELECTRODES

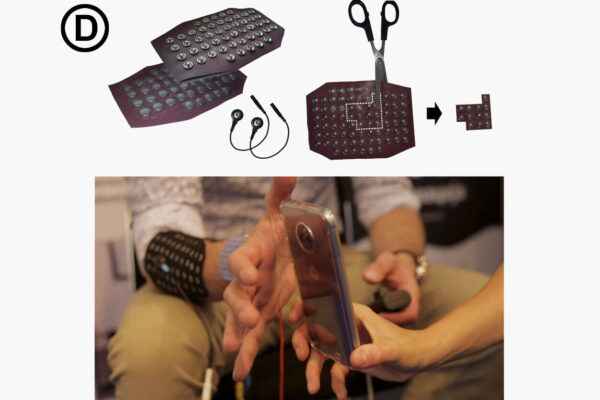

    An array with conductive pads can be customized in size and shape (you just need a pair of scissors).

    No leads. Pads are activated by the snap contact extension for the stimulation cable.

    Thin rubber based to take form of the any part of the body. Flexible and stretchable.

    The perforated hypoallergic hydrogel is contact with the skin. Perforation increases selectivity.

    Compatible with any stimulator.

    Publications:

    • Popovic-Maneski L., Surface array electrodes for interfacing motor systems: A review and new solutions, Proc. IcETRAN, June 12-16 2016, Zlatibor, Serbia, MEI1.4
    • Popović Maneski L., Topalović I., Jovičić N., Dedijer S., Konstantinović Lj., Popović D.B., "Stimulation map for control of functional grasp based on multi-channel EMG recordings", Medical Engineering & Physics, 2016, Vol. 38(11), pp. 1251-1259, http://dx.doi.org/10.1016/j.medengphy.2016.06.004
    • Popović-Maneski L, Kostić M, Bijelić G, Keller T, Mitrović S, Konstantinović Lj, Popović DB. Multi-pad electrode for effective grasping: design. IEEE Trans Neur Syst & Rehab Eng, 2013, Vol 21(4), pp. 648-654, DOI: 10.1109/TNSRE.2013.2239662.
    • FES UNDERWEAR
    •

    FES UNDERWEAR

    Supports stimulation of Gluteus, Quadriceps, Hamstring, Tibialis anterior and Gastrocnemius muscles.

    Easy donning with soft Velcro tape fastening and medical push-pull connectors. Convenient to don the bed or a wheelchair.

    Multiuse hypoallergic hydrogel pads or dry electrodes.

    Washable at up to 60 degrees.

    Toilet friendly, with an open area on the back side.

    Sizes: S, M, L

  • BIOFEEDBACK DEVICE
    •

    BIOFEEDBACK DEVICE

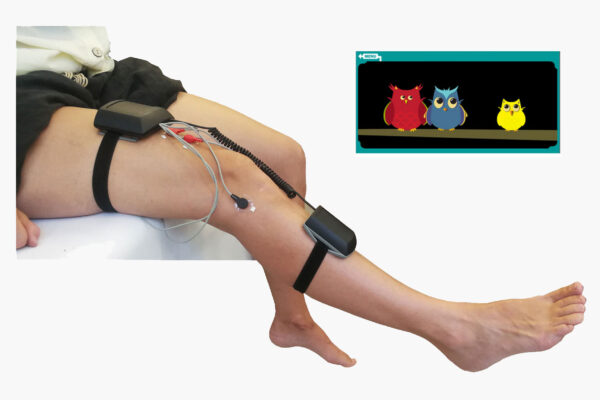

    Wireless recording of motion in the sagittal plane and 2-channel EMG recordings.

    Play online games with threshold control from 1 or 2 channels of EMG or joint angle.

    Automatic assessment the type and strength of spasticity based on pendulum test.

    Publications:

    • Popović Maneski, L., Topalović, I., Jovičić, N., Dedijer, S., Konstantinović, L., Popović, D.B. "Stimulation map for control of functional grasp based on multi-channel EMG recordings", Medical Engineering & Physics. 38 (2016), pp. 1251-1259. doi:10.1016/j.medengphy.2016.06.004
    • Popović Maneski, L., Aleksić, A., Čobeljić, R., Bajd, T., Popović, DB. A new method and instrumentation for analyzing spasticity, IETI Trans on Ergonomics and Safety, 2017, 1(1): 12-27, ISBN 978-1-4503-5287-1
    • Popović-Maneski, L., Aleksić, A., Metani, A., Bergeron, V., Čobeljić, R., Popović, D.B. „Assessment of spasticity by a pendulum test in SCI patients who exercise FES cycling or receive only conventional therapy.“ IEEE Trans on Neural Systems and Rehab Eng,.2017, in press (http://ieeexplore.ieee.org/document/8101553/)
  • All Products
  • MOTIMOVE

    MOTIMOVE

    Motimove-8 & Motimove-4
  • MOTIMOVE APPLICATIONS

    MOTIMOVE APPLICATIONS

    Choose one of our FES or create you own that most suits you!
  • ANTI-FATIGUE UNIT (AFU)

    ANTI-FATIGUE UNIT (AFU)

    Add-on to stimulator
  • RESEARCH MODE

    RESEARCH MODE

    Create your own stimulation procol
  • ARDUINO MODULE

    ARDUINO MODULE

    Combine with external controller
  • ELECTRODES

    ELECTRODES

    SNAP ARRAY ELECTRODES: Shape and snap!
  • FES UNDERWEAR

    FES UNDERWEAR

    No hanging cables anymore!
  • BIOFEEDBACK DEVICE

    BIOFEEDBACK DEVICE

    Wireless EMG biofeedback gaming & assessment of spasticity
